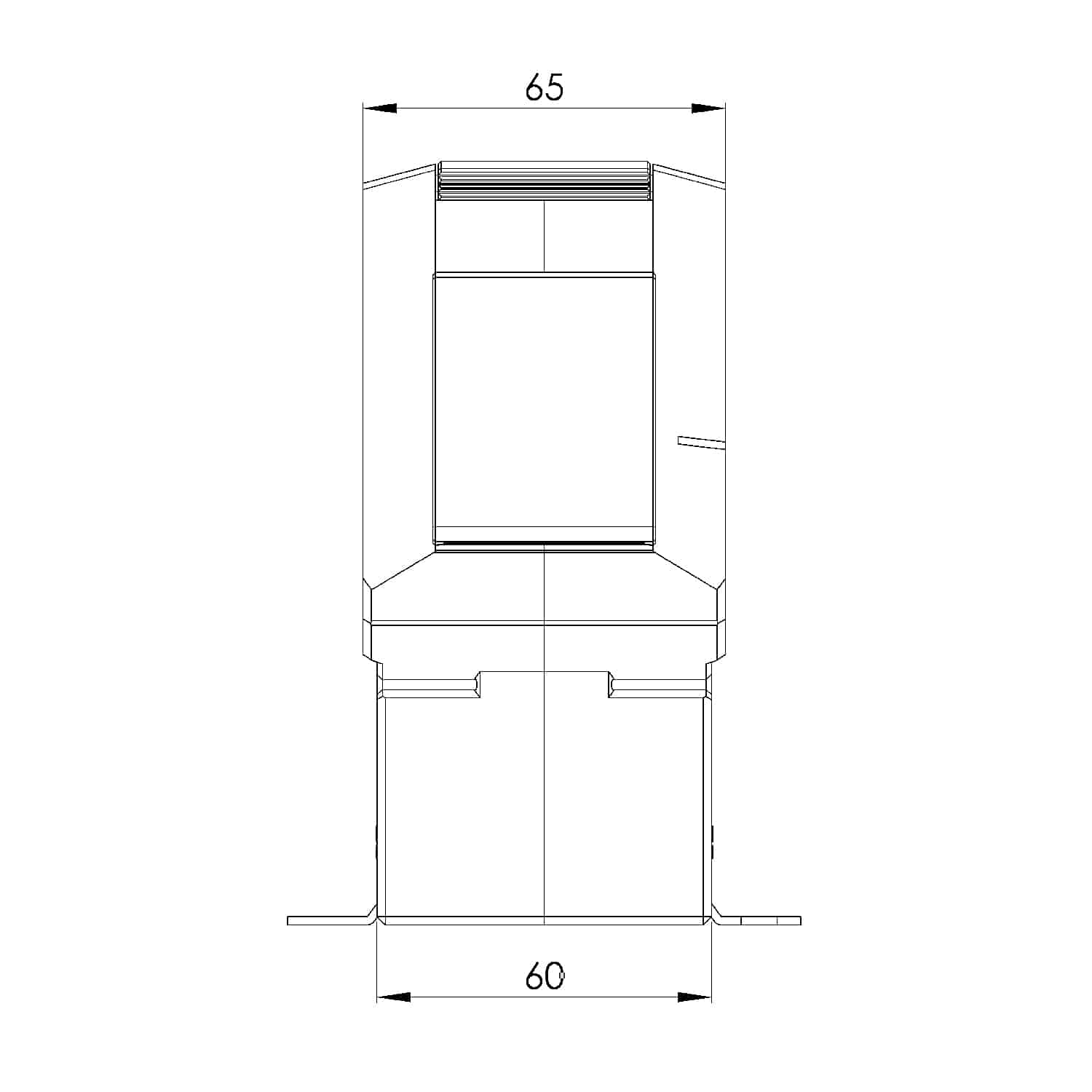

SUSK 2 - SUSK 8, KSU / SUSK – Summation current transformers, technical drawing 3

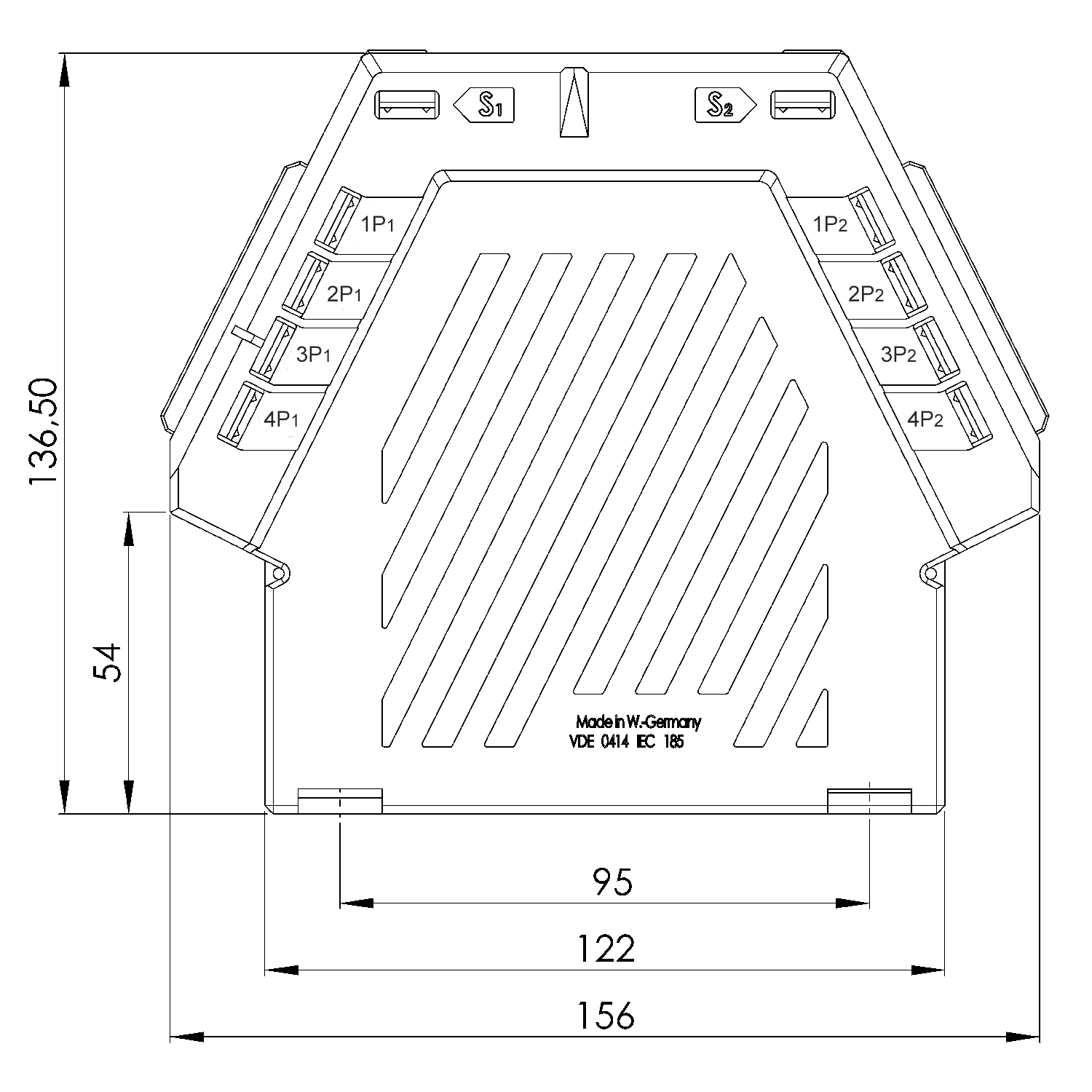

SUSK 2 - SUSK 8, KSU / SUSK – Summation current transformers, technical drawing 2
SUSK 2 - SUSK 8, KSU / SUSK – Summation current transformers, technical drawing 1

ESUSK 2

Therm. nominal continuous current Icth: 1,2 x Ipr Therm. nominal short-time current Ith: 60 x Ipr, 1 Sek. Max. operating voltage Um: 0,72 kV Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min Nominal rated frequency: 50 Hz Isolation class: E

Add to watch list
EAN: 4061701128413
SKU: ESUSK 2
Category:

Description

  • Therm. nominal continuous current Icth: 1,2 x Ipr
  • Therm. nominal short-time current Ith: 60 x Ipr, 1 Sek.
  • Max. operating voltage Um: 0,72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min
  • Nominal rated frequency: 50 Hz
  • Isolation class: E

Additional information

Weight 5106326 kg
Primary Current

Secondary Current

Burden (VA)

,

Accuracy Class
