Description
- Therm. nominal continuous rated current Icth: 1.2 x Ipr
- Therm. nominal short-time current Ith: 60 x Ipr, 1 sec.
- Max. operating voltage Um: 1.2 kV
- Isolation test voltage: 6 kV, Ueff, 50 Hz, 1 min.
- Rated frequency: 50 Hz
- Isolation class: B

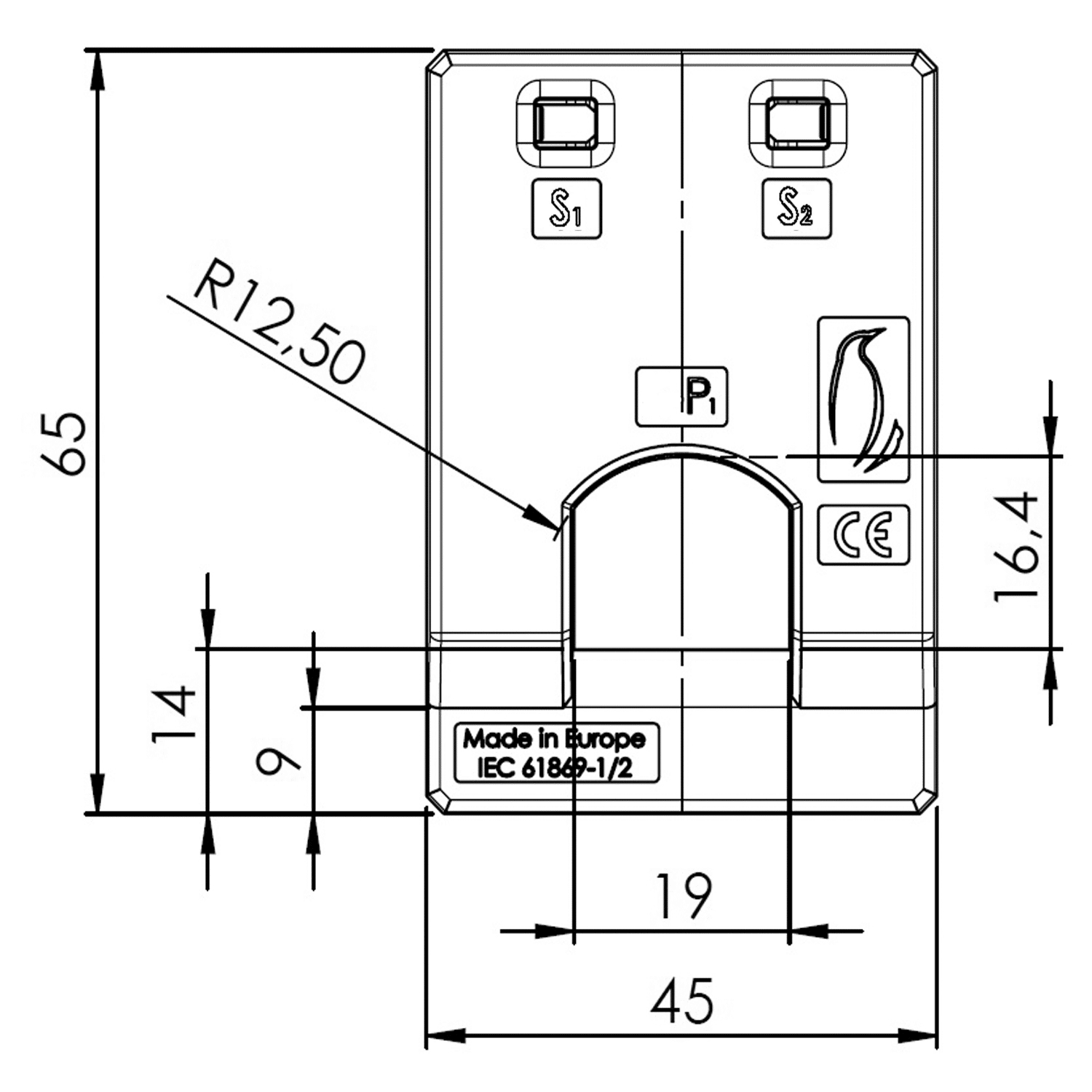

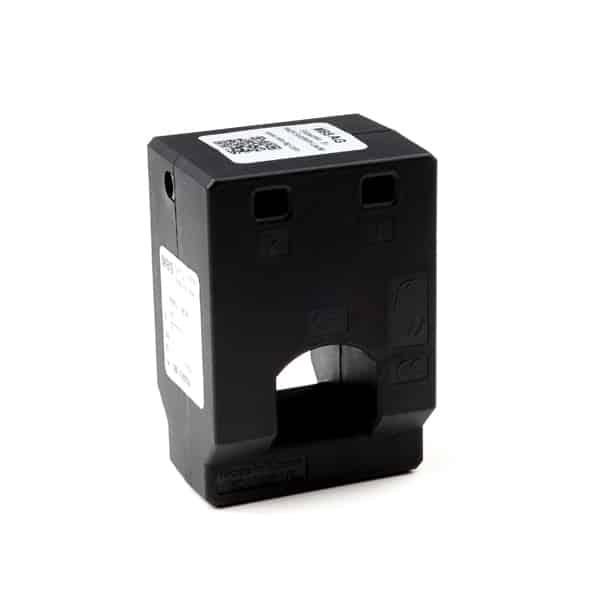

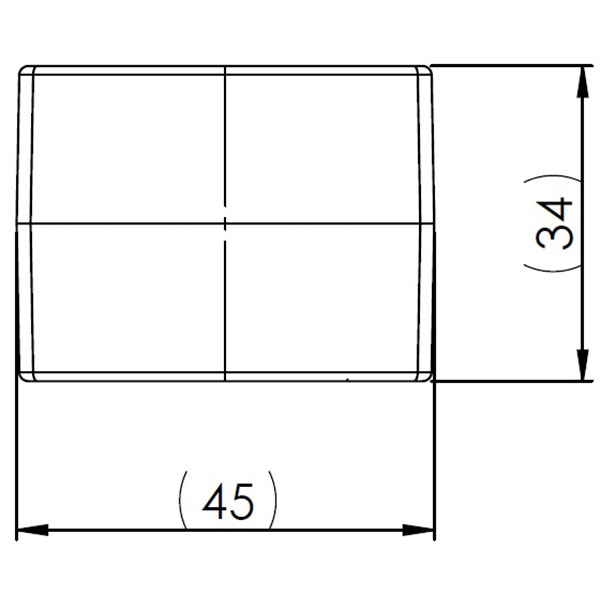

ASKL 19.34
Therm. nominal continuous rated current Icth: 1.2 x Ipr Therm. nominal short-time current Ith: 60 x Ipr, 1 sec. Max. operating voltage Um: 1.2 kV Isolation test voltage: 6 kV, Ueff, 50 Hz, 1 min. Rated frequency: 50 Hz Isolation class: B
Additional information
| Weight | 5106326 kg |
|---|---|
| Primary Current | |
| Secondary Current | |
| Burden (VA) | |
| Accuracy Class |
